Ships in 6-8 Weeks
RK73B2BTTD106J
Datasheet
1MB
Specifications
| Digi-Key Part Number | 2019-RK73B2BTTD106JTR-ND – Tape & Reel (TR) |
| 2019-RK73B2BTTD106JCT-ND – Cut Tape (CT) | |
| 2019-RK73B2BTTD106JDKR-ND – Digi-Reel® | |
| Manufacturer | KOA Speer Electronics, Inc. |
| Manufacturer Product Number | RK73B2BTTD106J |

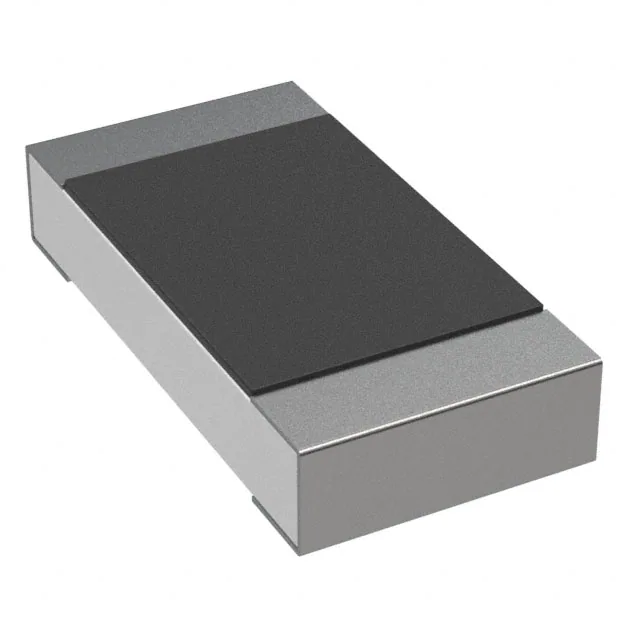

| Description | RES 10M OHM 5% 1/4W 1206 |
| Detailed Description | 10 MOhms ±5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200 Thick Film |
| Category | Resistors |
| Chip Resistor – Surface Mount | |
| Mfr | KOA Speer Electronics, Inc. |
| Series | RK73B |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Resistance | 10 MOhms |
| Tolerance | ±5% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200 |
| Temperature Coefficient | ±400ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.126″ L x 0.063″ W (3.20mm x 1.60mm) |
| Height – Seated (Max) | 0.028″ (0.70mm) |
| Number of Terminations | 2 |
| Failure Rate | – |
| Base Product Number | RK73B2B |
