Ships in 6-8 Weeks
MLG1005S2N0BT000
Specifications
| Digi-Key Part Number | 445-16277-2-ND – Tape & Reel (TR) |
| 445-16277-1-ND – Cut Tape (CT) | |
| 445-16277-6-ND – Digi-Reel® | |
| Manufacturer | TDK Corporation |
| Manufacturer Product Number | MLG1005S2N0BT000 |
| Description | FIXED IND 2NH 900MA 150 MOHM SMD |
| Manufacturer Standard Lead Time | 12 Weeks |

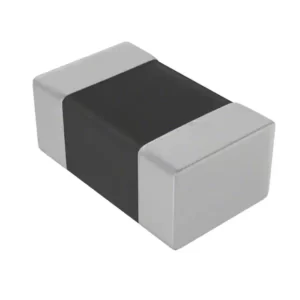

| Detailed Description | 2 nH Unshielded Multilayer Inductor 900 mA 150mOhm Max 0402 (1005 Metric) |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | TDK Corporation |
| Series | MLG |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Multilayer |
| Material – Core | Ceramic, Non-Magnetic |
| Inductance | 2 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 900 mA |
| Current – Saturation (Isat) | – |
| Shielding | Unshielded |
| DC Resistance (DCR) | 150mOhm Max |
| Q @ Freq | 7 @ 100MHz |
| Frequency – Self Resonant | 7.5GHz |
| Ratings | – |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency – Test | 100 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039″ L x 0.020″ W (1.00mm x 0.50mm) |
| Height – Seated (Max) | 0.022″ (0.55mm) |
