Ships in 6-8 Weeks

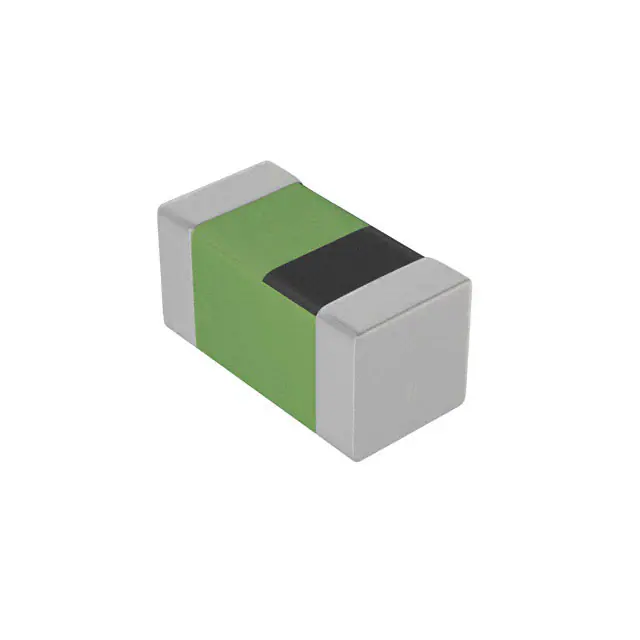

LQG15HS3N3B02D
Datasheet
1MB
Specifications
Digi-Key Part Number | 490-LQG15HS3N3B02DTR-ND – Tape & Reel (TR) |
Manufacturer | Murata Electronics |
Manufacturer Product Number | LQG15HS3N3B02D |
Description | FIXED IND 3.3NH 800MA 125MOHM SM |
Manufacturer Standard Lead Time | 16 Weeks |
Detailed Description | 3.3 nH Unshielded Multilayer Inductor 800 mA 125mOhm Max 0402 (1005 Metric) |
Category | Inductors, Coils, Chokes |
Fixed Inductors | |
Mfr | Murata Electronics |
Series | LQG15 |
Package | Tape & Reel (TR) |
Product Status | Active |
Type | Multilayer |
Material – Core | – |
Inductance | 3.3 nH |
Tolerance | ±0.1nH |
Current Rating (Amps) | 800 mA |
Shielding | Unshielded |
DC Resistance (DCR) | 125mOhm Max |
Q @ Freq | 8 @ 100MHz |
Frequency – Self Resonant | 6GHz |
Ratings | – |
Operating Temperature | -55°C ~ 125°C |
Inductance Frequency – Test | 100 MHz |
Features | – |
Mounting Type | Surface Mount |
Package / Case | 0402 (1005 Metric) |
Supplier Device Package | 0402 |
Size / Dimension | 0.039″ L x 0.020″ W (1.00mm x 0.50mm) |
Height – Seated (Max) | 0.022″ (0.55mm) |
