Ships in 6-8 Weeks
LQG15HS22NJ02D
Datasheet
1MB
Specifications
| Digi-Key Part Number | 490-2627-2-ND – Tape & Reel (TR) |
| 490-2627-1-ND – Cut Tape (CT) | |
| 490-2627-6-ND – Digi-Reel® | |
| Manufacturer | Murata Electronics |
| Manufacturer Product Number | LQG15HS22NJ02D |
| Description | FIXED IND 22NH 350MA 420MOHM SMD |
| Manufacturer Standard Lead Time | 16 Weeks |
| Detailed Description | 22 nH Unshielded Multilayer Inductor 350 mA 420mOhm Max 0402 (1005 Metric) |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Murata Electronics |
| Series | LQG15 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Multilayer |
| Material – Core | Air |
| Inductance | 22 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 350 mA |
| Current – Saturation (Isat) | – |
| Shielding | Unshielded |
| DC Resistance (DCR) | 420mOhm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency – Self Resonant | 1.9GHz |
| Ratings | – |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency – Test | 100 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |

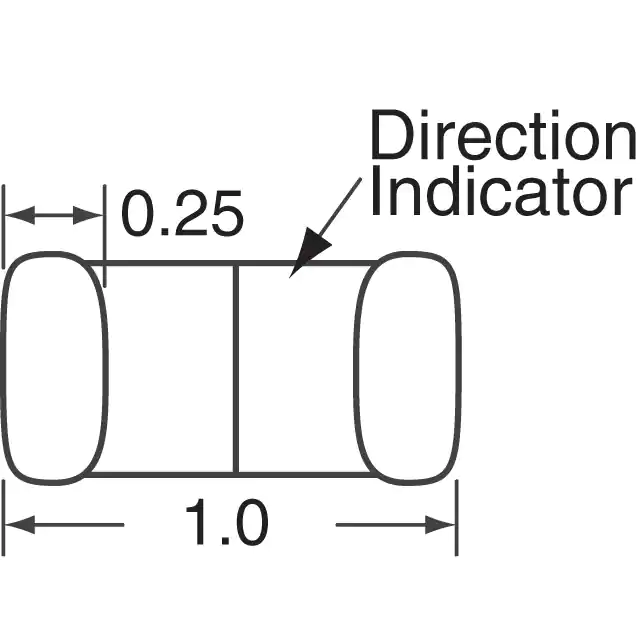

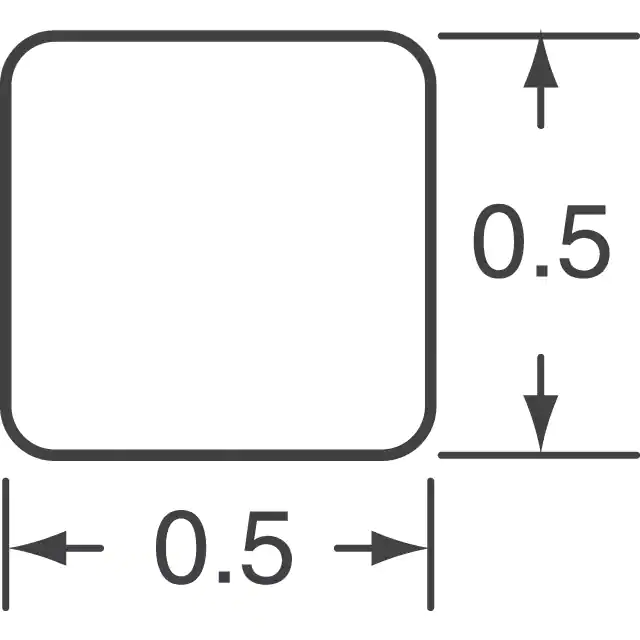

| Size / Dimension | 0.039″ L x 0.020″ W (1.00mm x 0.50mm) |
| Height – Seated (Max) | 0.022″ (0.55mm) |
| Base Product Number | LQG15HS |
