Home > Products > Connectors >
Ships in 6-8 Weeks

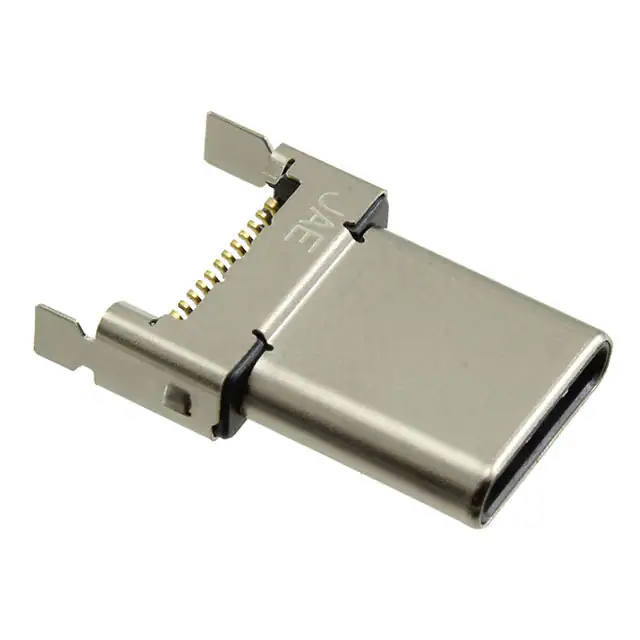

DX07P024MJ1R1500
Datasheet
1MB
Specifications
| Digi-Key Part Number | 670-2850-2-ND – Tape & Reel (TR) |
| 670-2850-1-ND – Cut Tape (CT) | |
| 670-2850-6-ND – Digi-Reel® | |
| Manufacturer | JAE Electronics |
| Manufacturer Product Number | DX07P024MJ1R1500 |
| Description | CONN PLUG USB3.1 TYPEC BRD EDGE |
| Manufacturer Standard Lead Time | 15 Weeks |
| Detailed Description | USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Plug Connector 24 Position Board Edge, Straddle Mount |
| Category | Connectors, Interconnects |
| USB, DVI, HDMI Connectors | |
| Mfr | JAE Electronics |
| Series | DX07 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Connector Type | USB-C (USB TYPE-C) |
| Number of Contacts | 24 |
| Gender | Plug |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Mounting Type | Board Edge, Straddle Mount |
| Mounting Feature | Reversible |
| Termination | Solder |
| Features | Cover |
| Ingress Protection | – |
| Operating Temperature | -30°C ~ 80°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 0.25A, 1.25A |
| Voltage – Rated | 20VAC |
| Mating Cycles | 10000 |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | – |
| Insulation Color | Black |
| Base Product Number | DX07P024 |

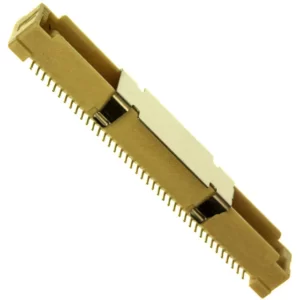

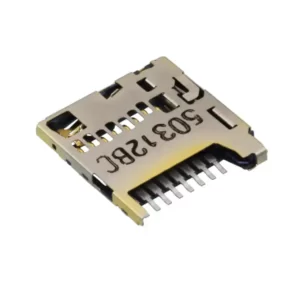

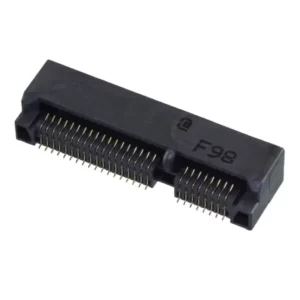

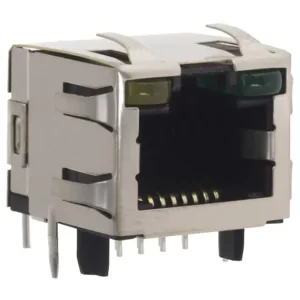

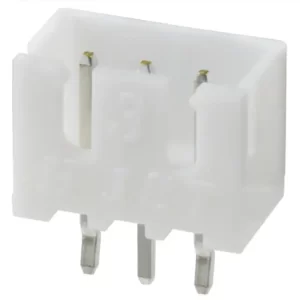

Similar Parts
