Ships in 6-8 Weeks
CBMF1608T470K
Datasheet
1MB
Specifications
Digi-Key Part Number | 587-1722-2-ND – Tape & Reel (TR) |
587-1722-1-ND – Cut Tape (CT) | |
587-1722-6-ND – Digi-Reel® | |
Manufacturer | Taiyo Yuden |
Manufacturer Product Number | CBMF1608T470K |
Description | FIXED IND 47UH 140MA 3.25OHM SMD |
Manufacturer Standard Lead Time | 39 Weeks |

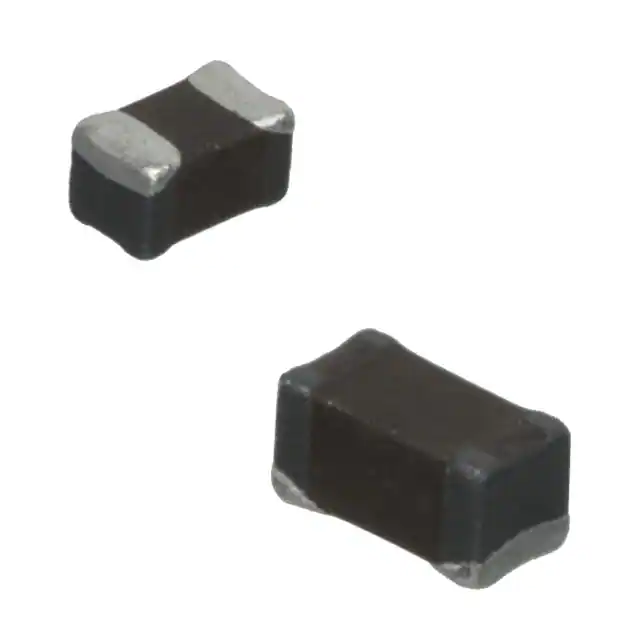

Detailed Description | 47 µH Unshielded Drum Core, Wirewound Inductor 140 mA 3.25Ohm Max 0603 (1608 Metric) |
Category | Inductors, Coils, Chokes |
Fixed Inductors | |
Mfr | Taiyo Yuden |
Series | CB, MF Type |
Package | Tape & Reel (TR) |
Cut Tape (CT) | |
Digi-Reel® | |
Product Status | Active |
Type | Drum Core, Wirewound |
Material – Core | Ferrite |
Inductance | 47 µH |
Tolerance | ±10% |
Current Rating (Amps) | 140 mA |
Current – Saturation (Isat) | 50mA |
Shielding | Unshielded |
DC Resistance (DCR) | 3.25Ohm Max |
Q @ Freq | – |
Frequency – Self Resonant | 11MHz |
Ratings | – |
Operating Temperature | -40°C ~ 105°C |
Inductance Frequency – Test | 2.52 MHz |
Mounting Type | Surface Mount |
Package / Case | 0603 (1608 Metric) |
Supplier Device Package | 0603 (1608 Metric) |

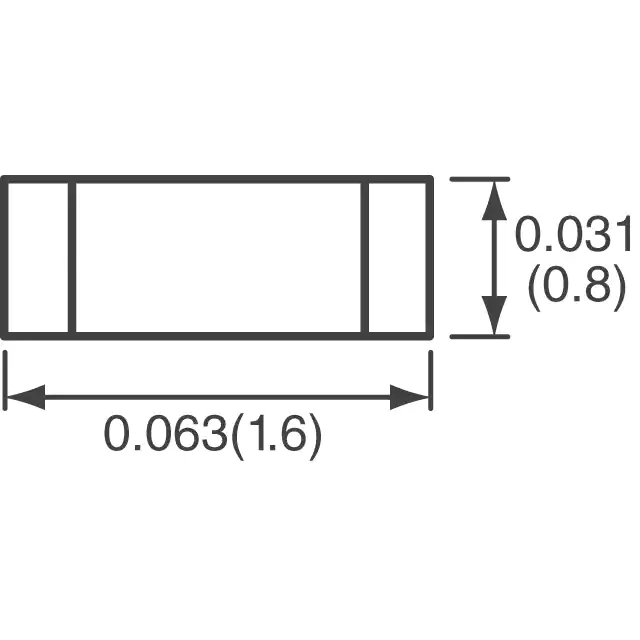

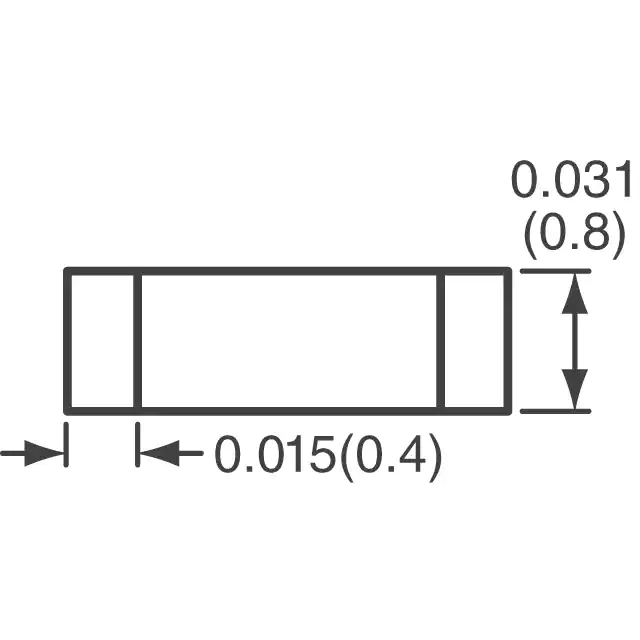

Size / Dimension | 0.063″ L x 0.031″ W (1.60mm x 0.80mm) |
Height – Seated (Max) | 0.039″ (1.00mm) |
