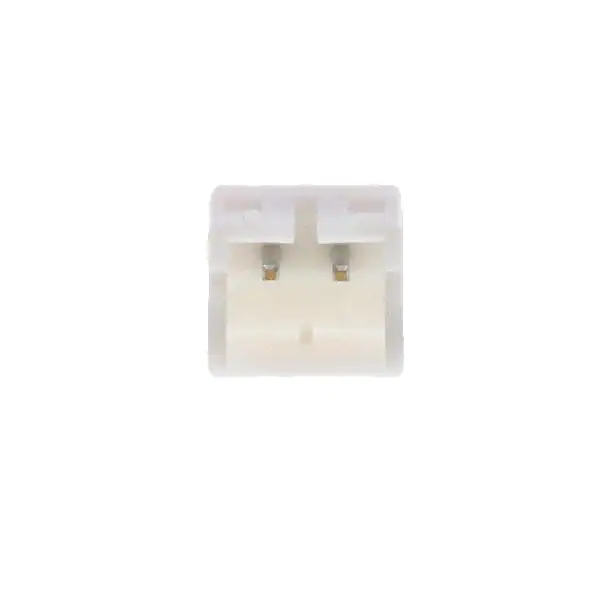

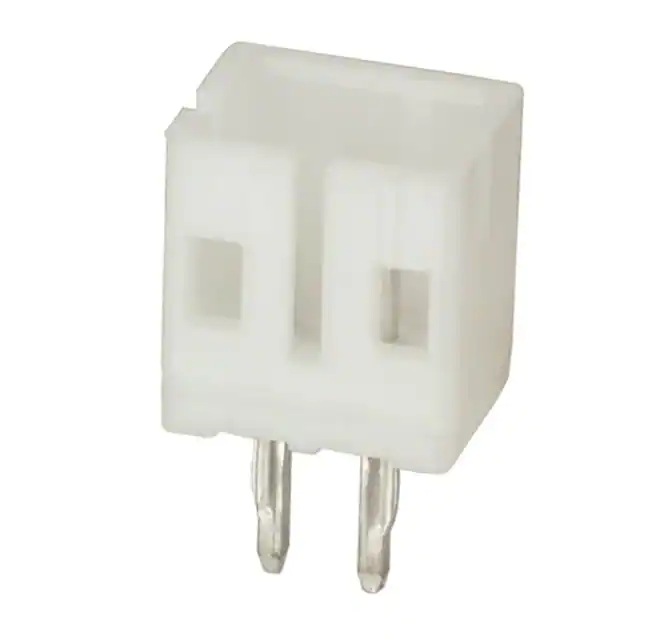

B2B-PH-K-S(LF)(SN)
Datasheet
1MB
Specifications
Digi-Key Part Number | 455-1704-ND |
Manufacturer | JST Sales America Inc. |
Manufacturer Product Number | B2B-PH-K-S(LF)(SN) |
Description | CONN HEADER VERT 2POS 2MM |
Detailed Description | Connector Header Through Hole 2 position 0.079″ (2.00mm) |
Category | Connectors, Interconnects |
Rectangular Connectors – Headers, Male Pins | |
Mfr | JST Sales America Inc. |
Series | PH |
Package | Bulk |
Product Status | Active |
Connector Type | Header |
Contact Type | Male Pin |
Pitch – Mating | 0.079″ (2.00mm) |
Number of Positions | 2 |
Number of Rows | 1 |
Row Spacing – Mating | – |
Number of Positions Loaded | All |
Style | Board to Cable/Wire |
Shrouding | Shrouded – 4 Wall |
Mounting Type | Through Hole |
Termination | Press-Fit, Solder |
Fastening Type | Detent Lock |
Contact Length – Mating | 0.130″ (3.30mm) |
Contact Length – Post | 0.134″ (3.40mm) |
Overall Contact Length | 0.333″ (8.45mm) |
Insulation Height | 0.236″ (6.00mm) |
Contact Shape | Square |
Contact Finish – Mating | Tin |
Contact Finish Thickness – Mating | – |
Contact Finish – Post | Tin |
Contact Material | Brass |
Insulation Material | Polyamide (PA66), Nylon 6/6 |
Features | – |
Operating Temperature | -25°C ~ 85°C |
Ingress Protection | – |
Material Flammability Rating | UL94 V-0 |
Insulation Color | Natural |
Current Rating (Amps) | 2A |
Voltage Rating | 100V |
Mated Stacking Heights | 8mm |
Contact Finish Thickness – Post | – |
Applications | – |
Base Product Number | B2B-PH-K |
