Home > Products > Connectors >
Ships in 6-8 Weeks

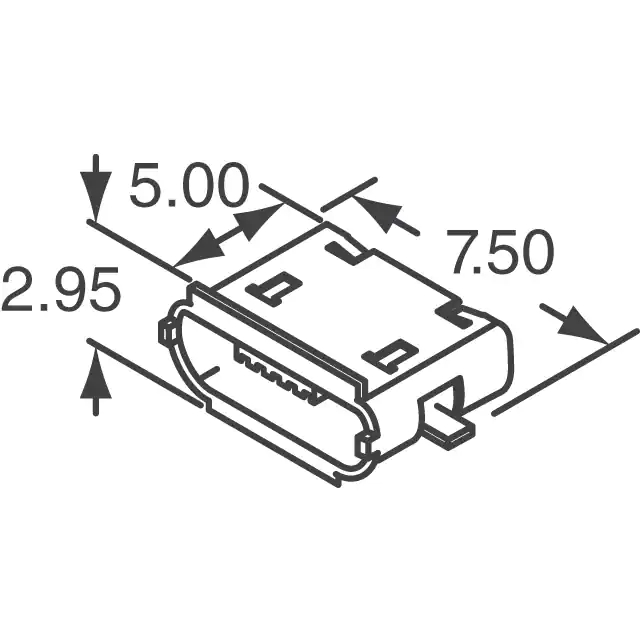

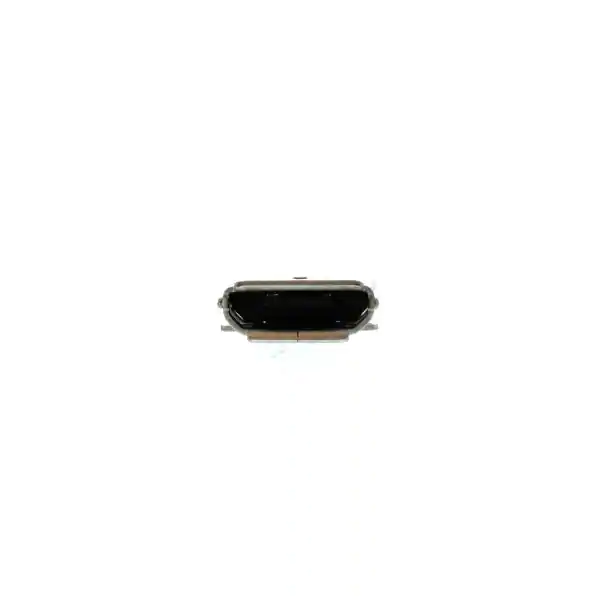

0473460001
Datasheet
1MB
Specifications
| cms-digikey-product-number | WM17141TR-ND – Tape & Reel (TR) |
| WM17141CT-ND – Cut Tape (CT) | |
| WM17141DKR-ND – Digi-Reel® | |
| cms-manufacturer | Molex |
| cms-manufacturer-product-number | 473460001 |
| cms-description | CONN RCPT USB2.0 MICRO B SMD R/A |
| cms-standard-lead-time | 13 Weeks |
| cms-detailed-description | USB – micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle |
| cms-category | Connectors, Interconnects |
| USB, DVI, HDMI Connectors | |
| Mfr | Molex |
| Series | 47346 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Connector Type | USB – micro B |
| Number of Contacts | 5 |
| Gender | Receptacle |
| Specifications | USB 2.0 |
| Mounting Type | Surface Mount, Right Angle |
| Mounting Feature | Horizontal |
| Termination | Solder |
| Features | Pick and Place, Solder Retention |
| Ingress Protection | – |
| Operating Temperature | -30°C ~ 85°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 1A, 1.8A |
| Voltage – Rated | 30VAC |
| Mating Cycles | 10000 |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Base Product Number | 47346 |
